Force transducers

Designing and production of force transducers according to the norms ISO 376 and ASTM E74.
Nominal loads from 50N up to 5MN.
Classes 00, 0.5 and 1
Applications in Compression and Tension.
On request is possible tu have the transducers complete of ACCREDIA Certificate.

Showing all 24 results

12/24/48/All

DNA2
DNA2

Compact Dynamometer for COMPRESSION and TENSION measurements
Nominal Loads from 100kg to 5t
Accuracy: 0.05% Class (ISO 376) 1

Applications:
Fall arrest lifelines verification.
Verification of safety ropes.
Verification of chains.
Concrete dowel extraction tests.
Verification of thrust force and trolley towing.
Verification of force generated by presses or clamps.
Verification of closing force of doors and gates.
- Categories: Dynamometers Force transducers
STAR-F
STAR-F

Professional ergonomic indicator extremely versatile and easy to be used for measurement of FORCE, WEIGHT, PRESSURE (gas), VACUUM, TORQUE and DISPLACEMENT. It is possible to integrate inside a FORCE sensor from 10 N to 5 kN or a pressure sensor (relative, absolute or differential up to max. 5bar) while from the external input it is possible to connect strain gauges sensors with output in mV/V such as: load cells, force transducers, pressure transducers, torque and displacement transducers. AUTOMATIC recognition of FORCE, WEIGHT, VACUUM, PRESSURE, TORQUE and DISPLACEMENT external transducers (max. 7) LCD graph DISPLAY with 3 levels of backlighting to adapt itself to any conditions of external brightness and with the possibility of rotating the visualization of 180°. DIGITAL CALIBRATIONS protected by Password with full scale programming or with the “LINEARIZATION by points” of transducers, for every transducer it is possible to separately calibrate both the positive and the negative field. (Example: Tension and Compression) DATALOGGER allows to memorize measurements and to keep them in the internal memory even in case of instrument switching off. (max. 130.000 recordings)
- Categories: Force transducers
CLF
CLF

Force transducers for the measurement of static and dynamic loads in COMPRESSION.
Nominal Load from 300 kN to 5 MN
Class (ISO 376) 1
Linearity and Hysteresis 0,05%
Output: 2mV/V
- Categories: Force transducers
CLFLEX
CLFLEX

The transducer consists of a STRAIN CYLINDER and a FORCE transducer used for the calibration and auto alignment of the joints as well as for the force centering of compression test machines on hardened concrete.

Executed according to the norm references: UNI EN 12390-4 and DIN 51302-2.

Nominal Load 3 MN
Class (ISO 376) 1
Linearity and Hysteresis 0,05%
Output: 2mV/V
- Categories: Force transducers
CLSTM
CLSTM

Force transducers for the measurement of static and dynamic loads in COMPRESSION.

Nominal Load from 300 kN to 5 MN
Class (ISO 376) 1 and 0.5
Linearity and Hysteresis 0,05%
Output: 2mV/V
- Categories: Force transducers
CLB
CLB

Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION.
Nominal Load from 30 kN to 1000 kN
Class (ISO 376) 00, 0.5 and 1
Linearity and Hysteresis 0,03%
Output: 2mV/V
- Categories: Force transducers
KAL
KAL

Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION.
Nominal Load from 10 kN to 2 MN
Class (ISO 376) 00, 0.5 and 1
Linearity and Hysteresis 0,03%
Output: 2mV/V
- Categories: Force transducers
MICROKAL
MICROKAL

Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION.
Nominal Load from 50 N to 5 kN
Class (ISO 376) 00, 0.5 and 1
Linearity and Hysteresis 0,03%
Output: 2mV/V
- Categories: Force transducers
C8S
C8S

Force transducers for the measurement of static and dynamic loads in COMPRESSION.
Nominal Load from 5 kN to 2 MN
Class (ISO 376) 0.5 and 1
Linearity and Hysteresis 0,03%
Output: 2mV/V

On request
- Categories: Force transducers
TC4
TC4

Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION
Nominal Load from 2.5 kN to 5 MN
Class (ISO 376) 1
Linearity and Hysteresis 0,05%
Output: 2mV/V
on request
- Categories: Force transducers
TC4-AMP
TC4-AMP

Force transducers for the measurement of static loads in COMPRESSION and TENSION
Nominal Load from 5 kN to 5 MN
Linearity and Hysteresis 0,05%

Standar output
- Categories: Force transducers
DC-TC4
DC-TC4

Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION.
Nominal Load from 10 kN to 1 MN
Linearity and Hysteresis 0.05%

INTEGRATED DIGITAL INDICATOR Functions ZERO, PEAK, Digital FILTER Programmable.
- Categories: Force transducers
DCV-TC4
DCV-TC4

Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION
Nominal Load from 10 kN to 1 MN
Linearity and Hysteresis 0.05%

INTEGRATED DIGITAL INDICATOR
ZERO adjustment
- Categories: Force transducers
MICROTC4
MICROTC4

Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION
Nominal Load from 1 kN to 10 kN
Linearity and Hysteresis 0,05%
Output: 2mV/V

SMALL SIZE
- Categories: Force transducers
MICROTC4-AMP
MICROTC4-AMP

Force transducers for the measurement of static loads in COMPRESSION and TENSION
Nominal Load from 1 kN to 10 kN
Linearity and Hysteresis 0,05%

SMALL SIZE

Standar output
- Categories: Force transducers
MICROTC5
MICROTC5

Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION
Nominal Load from 1 kN to 10 kN
Linearity and Hysteresis 0,05%
Output: 2mV/V

SMALL SIZE
- Categories: Force transducers
MICROTC5-AMP
MICROTC5-AMP

Force transducers for the measurement of static loads in COMPRESSION and TENSION
Nominal Load from 1 kN to 10 kN
Linearity and Hysteresis 0,05%

SMALL SIZE

Standar output
- Categories: Force transducers
TC8
TC8

Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION
Nominal Load from 10 kN to 1 MN
Class (ISO 376) 0.5 and 1
Linearity and Hysteresis 0,03%
Output: 2mV/V

On request
- Categories: Force transducers
C10
C10

Force transducers for the measurement of static and dynamic loads in COMPRESSION an TENSION
Nominal Load from 10 kN to 1 MN
Linearity and Hysteresis 0,10% and 0,20%
Standard Output 2mV/V
- Categories: Force transducers
C10-AMP
C10-AMP

Force transducers for the measurement of static and dynamic loads in COMPRESSION an TENSION
Nominal Load from 10 kN to 1 MN
Linearity and Hysteresis 0,10% and 0,20%
Standard Output
- Categories: Force transducers
CM
CM

Force transducers for the measurement of static and dynamic loads in COMPRESSION.
Nominal Load from 50 kg to 5 tons
Linearity and Hysteresis 0,20%
SMALL SIZE
Standard Output 2mV/V
- Categories: Force transducers

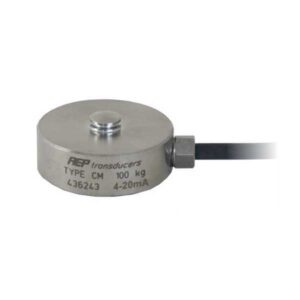

CM-AMP
CM-AMP

Transductor de fuerza de COMPRESIÓN para la medida de cargas estáticas y dinámicas
Carga nominal de 50kg a 5t
Linealidad e histeresis 0.20%
DIMENSIONES REDUCIDAS
Sensibilidad nominal 2mV/V
- Categories: Force transducers
TCETM
TCETM

Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION
Nominal Load from 5 kN to 100 kN
Class (ISO 376) 00, 0.5 and 1
Linearity and Hysteresis 0,03%
Output: 2mV/V

On request
- Categories: Force transducers
TSTM
TSTM

Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION
Nominal Load from 500 N to 5 kN
Class (ISO 376) 00, 0.5 and 1
Linearity and Hysteresis 0,025%
Output: 2mV/V

On request
- Categories: Force transducers
